Osmio Ultra-Ceram 3 Way Tap Filter Kit


Introducing the Osmio Ultra-Ceram 3 Way Tap Filter Kit, a versatile solution designed to work with any 3 way tap on the market, including all the 3 way taps we supply. With the flexibility to change fittings as needed, this kit can be customized to meet your specific requirements. Please feel free to contact us for any fitting adjustments you may require.

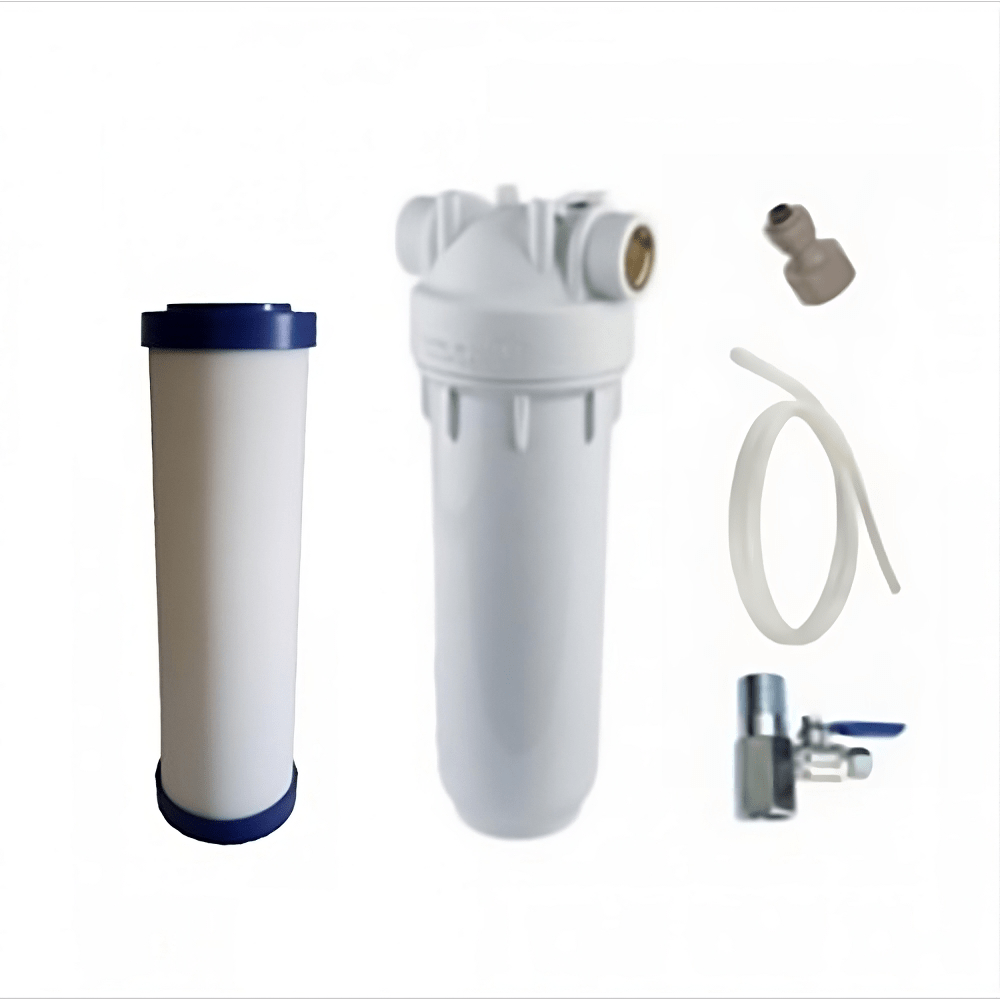

The standard kit includes the following components:

  1. Coldstream CF108W Ceramic Water Filter Cartridge (2.9" x 9.75" OBE): This high-quality ceramic filter cartridge provides exceptional filtration performance, effectively reducing contaminants and ensuring clean and safe drinking water.

  2. White Housing for 2.5 x 10 Inch (9 3/4") Filter: The durable white housing, complete with a metal bracket, spanner, and screws, securely holds the filter cartridge in place, providing stability and ease of use.

  3. Tubing (2 meters): A length of 1/4" tubing is included in the standard kit, but we can swap it for 3/8" if required. Please see the options above and let us know your preference.

  4. Feed-in Valve: This valve, featuring 1/2" male and female connections, is designed to be installed between the flexible hose and copper pipe of the cold side connection, ensuring proper integration with your existing plumbing setup.

  5. Tap Connector: The tap connector allows for easy connection of the filter kit to your chosen tap. It is available in 1/2" male or female options, compatible with push-fit tubing of either 1/4" or 3/8" diameter.


  • Height (including bracket): 340mm
  • Width (at widest part): 115mm
  • Depth (at widest part): 115mm

Operating Performance:

  • Working Pressure: Minimum 10 Psi, Maximum 125 Psi
  • Recommended Incoming Pressure: Minimum 3 bar for a good flow rate, or 2 bar if used on a separate tap

Working Parameters:

  • Working Temperature Range: 5 - 70°C
  • Suitable for Gravity Filters: No
  • Recommended Change Frequency: Every 6 months
  • Rated Flow: 2.5 l/min
  • Capacity Before Replacement (to guarantee performance): 4000 liters

Certifications and Performance:

  • Bacteria Removal Rate (Klebsiella terrigena/Microspheres): 99.9%
  • Lead Removal: 93.30%
  • Pesticide and Herbicide Contaminant Removal: >99.10%
  • Free Chlorine Removal (at 1.8-2.1 ppb presence): 94.70%
  • Chloramine Removal (at 2.7-3.1 ppb presence): >96.8%

Independently tested and certified by IAPMO R&T Laboratory (NJ), the Coldstream filters in this kit meet rigorous standards, including NSF/ANSI 42 Aesthetic Effects and NSF/ANSI 53 Health Effects.

Upgrade your tap water filtration with the reliable and efficient Osmio Ultra-Ceram 3 Way Tap Filter Kit. Enjoy the peace of mind that comes with cleaner, safer drinking water for you and your family. Trust in Zonowellness to provide you with top-quality Osmio water products for superior filtration performance.
